Machines laser fermées Ortur (sécurité de classe 1)

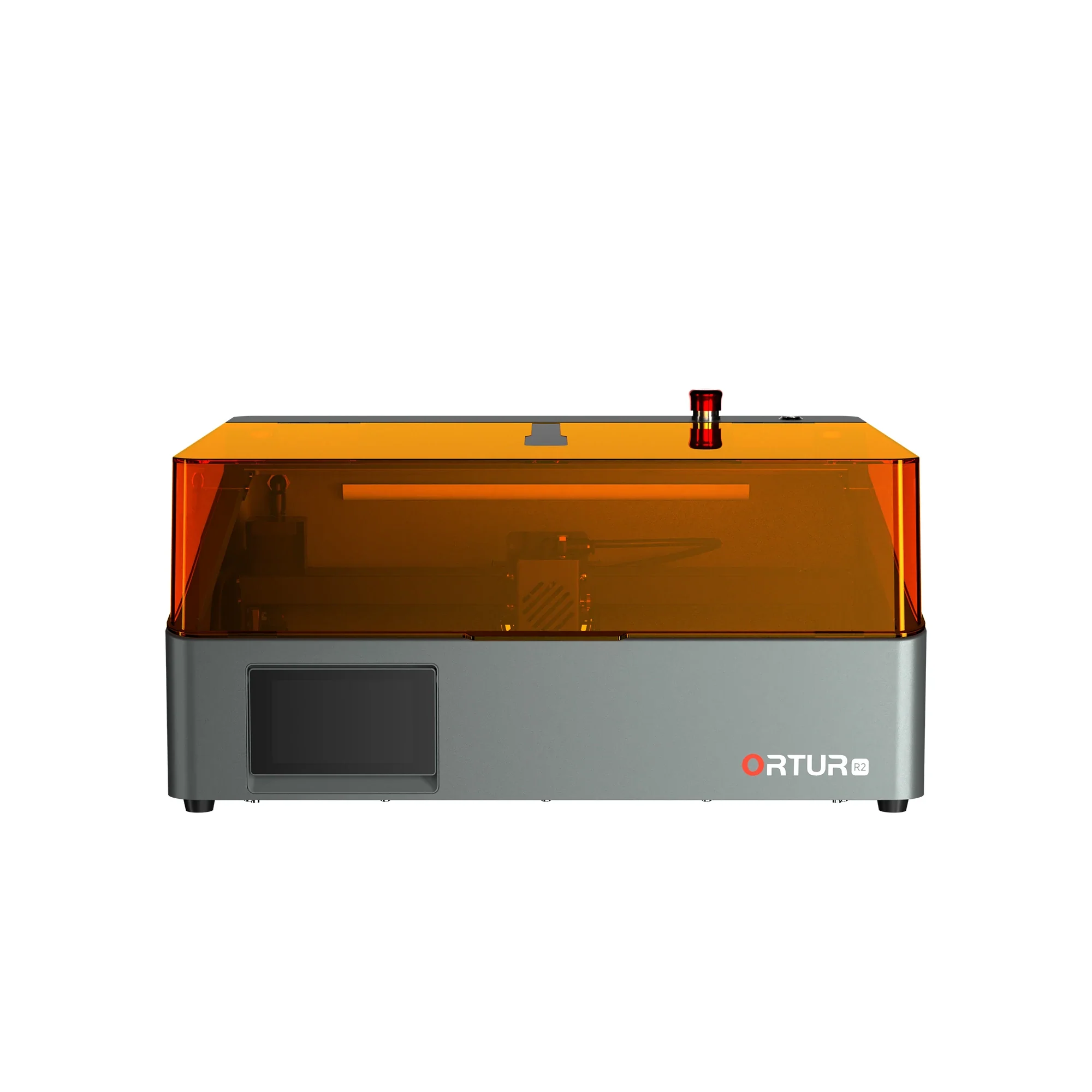

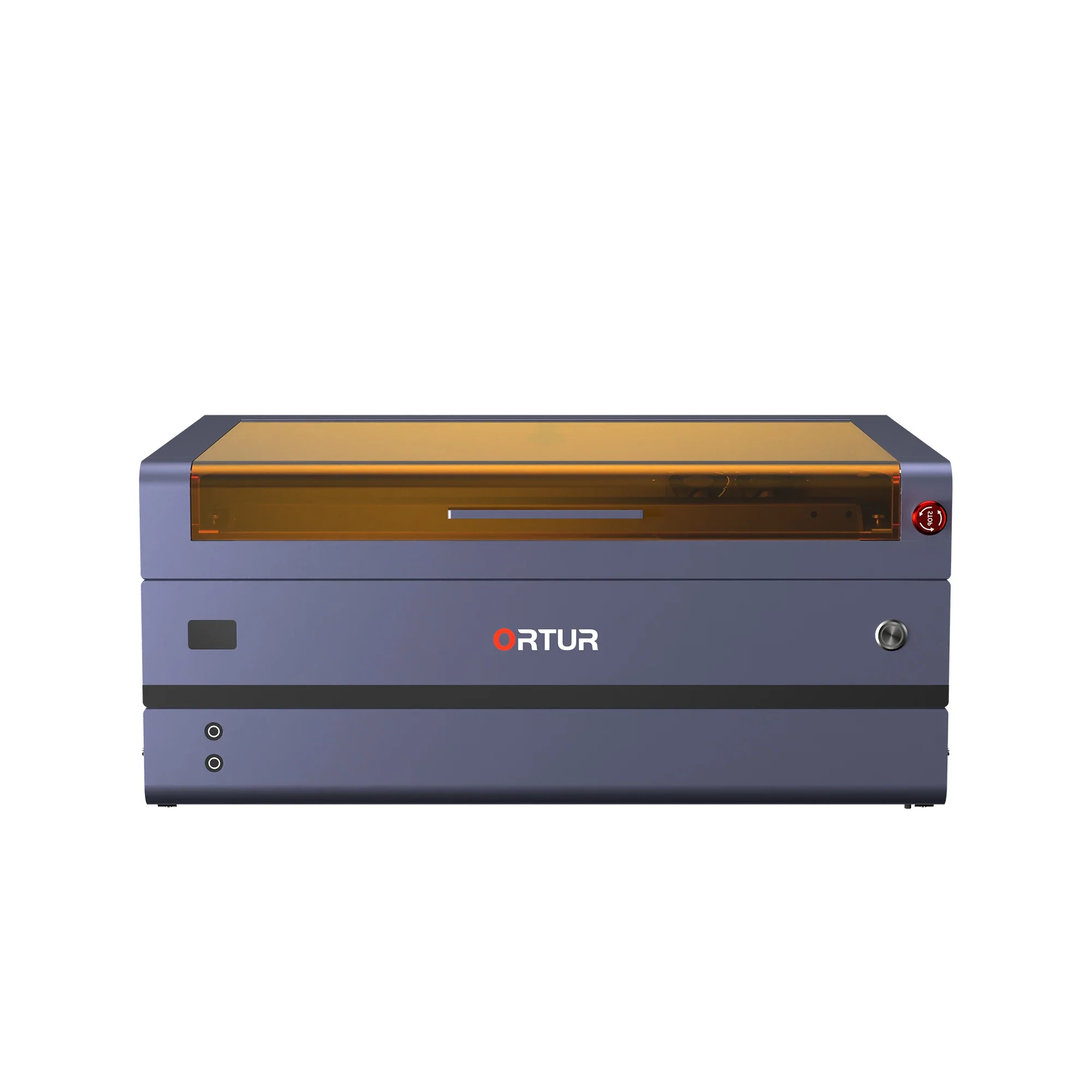

| Model | Ortur H20 | Ortur R2 |
|---|---|---|
| Main Features |
- First modular enclosed engraver & cutter - Wireless module switching (4 modules) - Camera Vision Positioning - Auto-focus + OLED screen - 9 Safety Protections |
- Professional-grade enclosed engraver - Dual Laser Compatibility (Blue + IR) - AI-powered Mobile App - Smart File Memory (8 slots) - Military-grade Protection - 5-point Flame Detection |
| Max Speed | 20,000 mm/min | 20,000 mm/min |
| Working Area |
- 10W/20W: 420×300 mm - 40W: 410×275 mm - 2W IR: 420×275 mm |
- LR4-2B(R2): 300×210 mm - LU3-10A(R2): 300×210 mm - LU3-20A(R2): 300×190 mm |
| Product Size | 625×426×271 mm | 574.5×212.5×176.5 mm |
| Package Size | 715×565×475 mm | 625×342×227 mm |
| Supported Software | LightBurn, LaserGRBL, Ortur App | LightBurn, LaserGRBL, Ortur App |
| Supported Functions | Wi-Fi / App / USB / TF Card | Wi-Fi / App / USB / TF Card |
| Supported Formats | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG |
| Supported Systems | Windows, Mac OS, Linux, Android, iOS | Windows, Mac OS, Linux, Android, iOS |
| Safety Protections |
- Class 1 Laser Enclosure - Viewing Cover - Safety Lock - Motherboard Monitoring - Emergency Stop - Position Protection - Exposure Detection - Laser Beam Guard - Watchdog |
- Military-grade Enclosure - 5-point Flame Detection - Tilt Detection - Crash Watchdog - Laser Exposure Limit - Position Protection - Voltage/Current Control |
| Link | Learn More > | Learn More > |
Machines laser à cadre ouvert Ortur

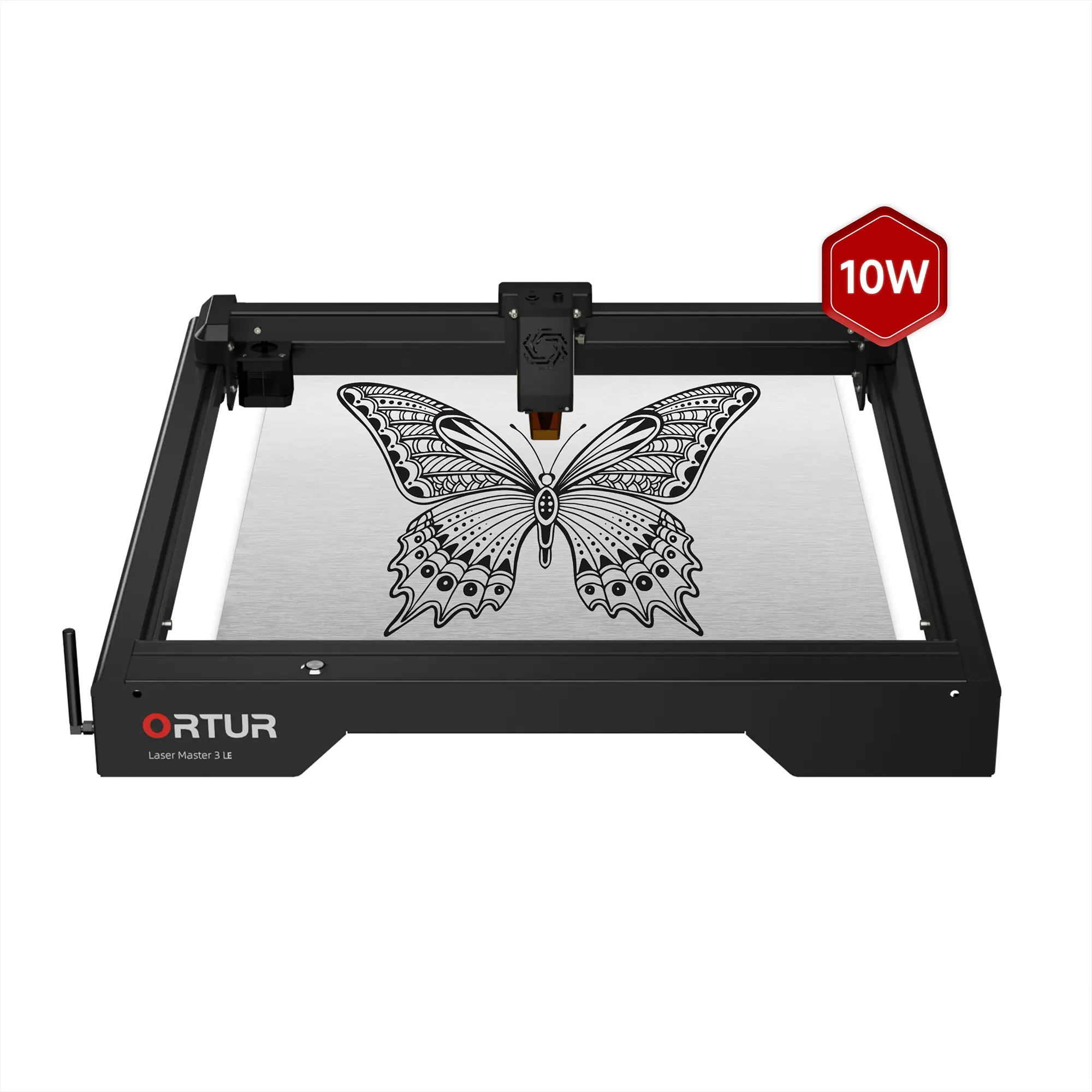

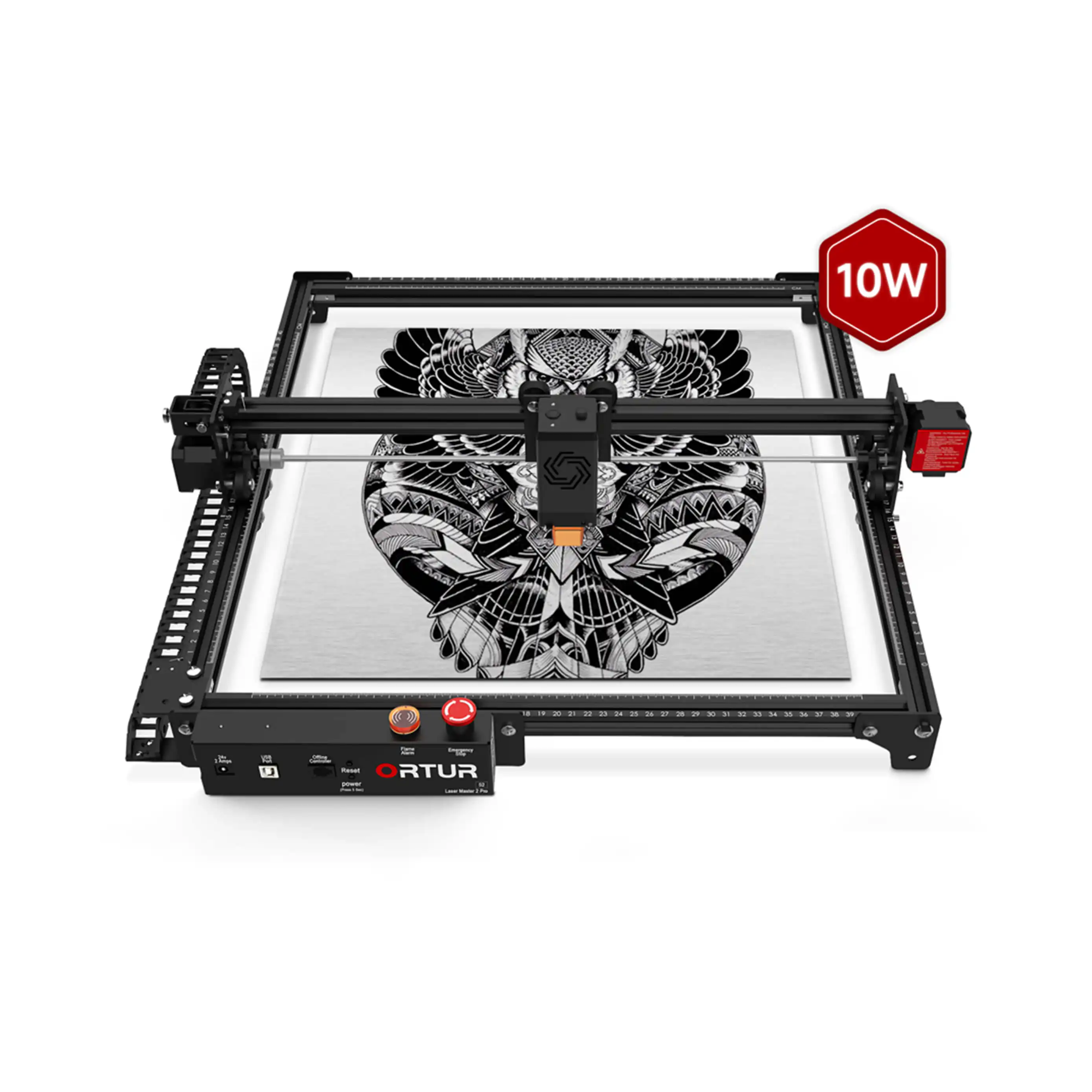

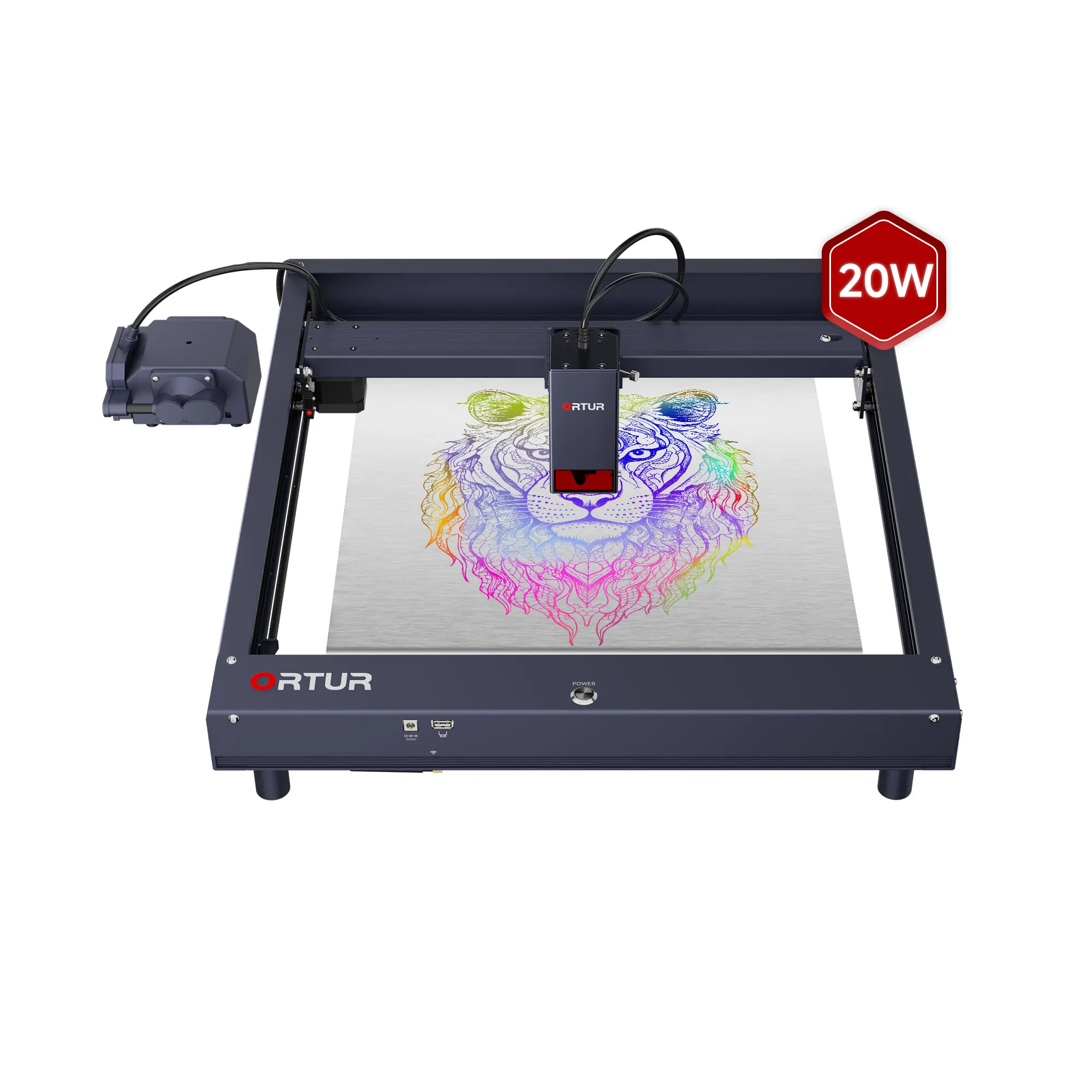

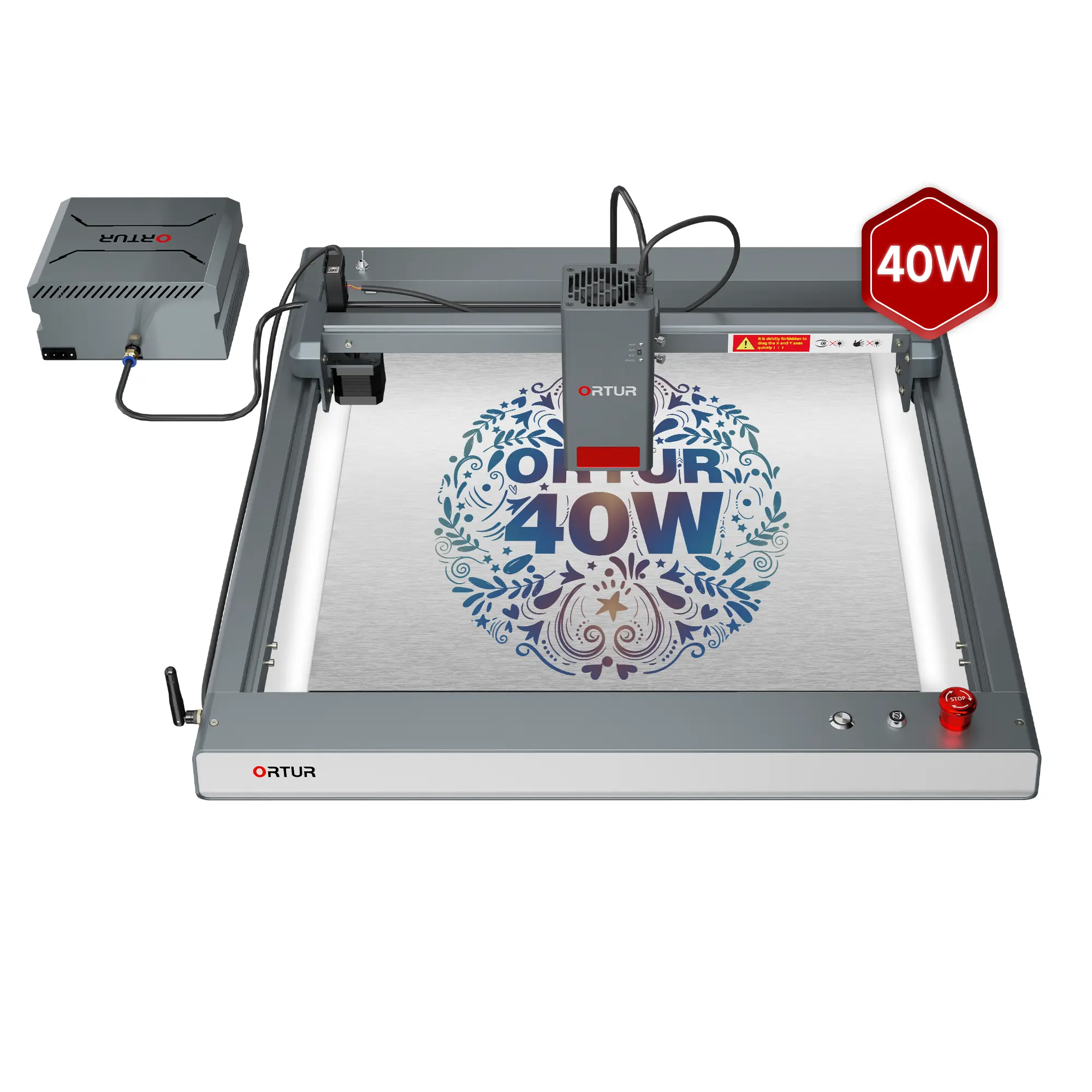

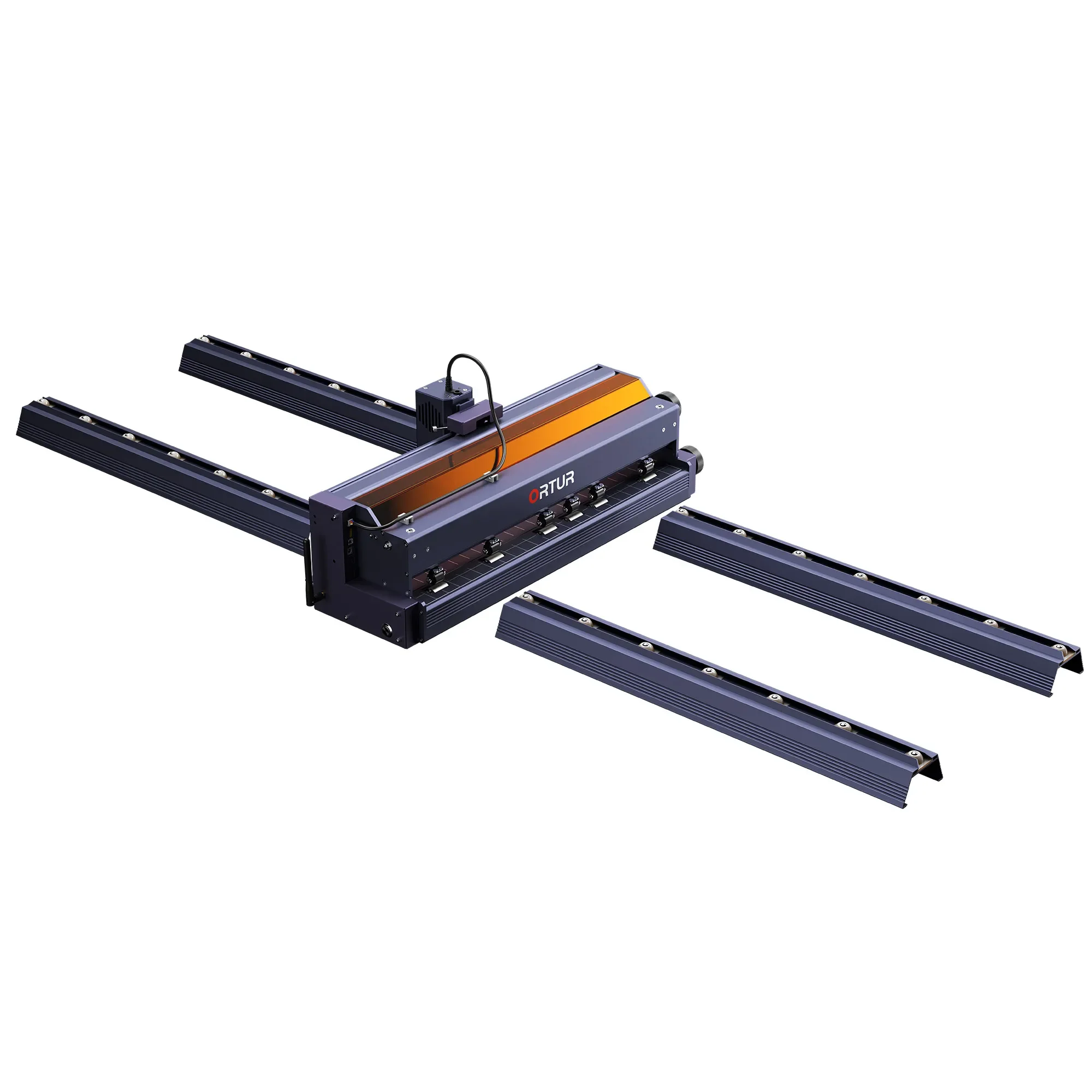

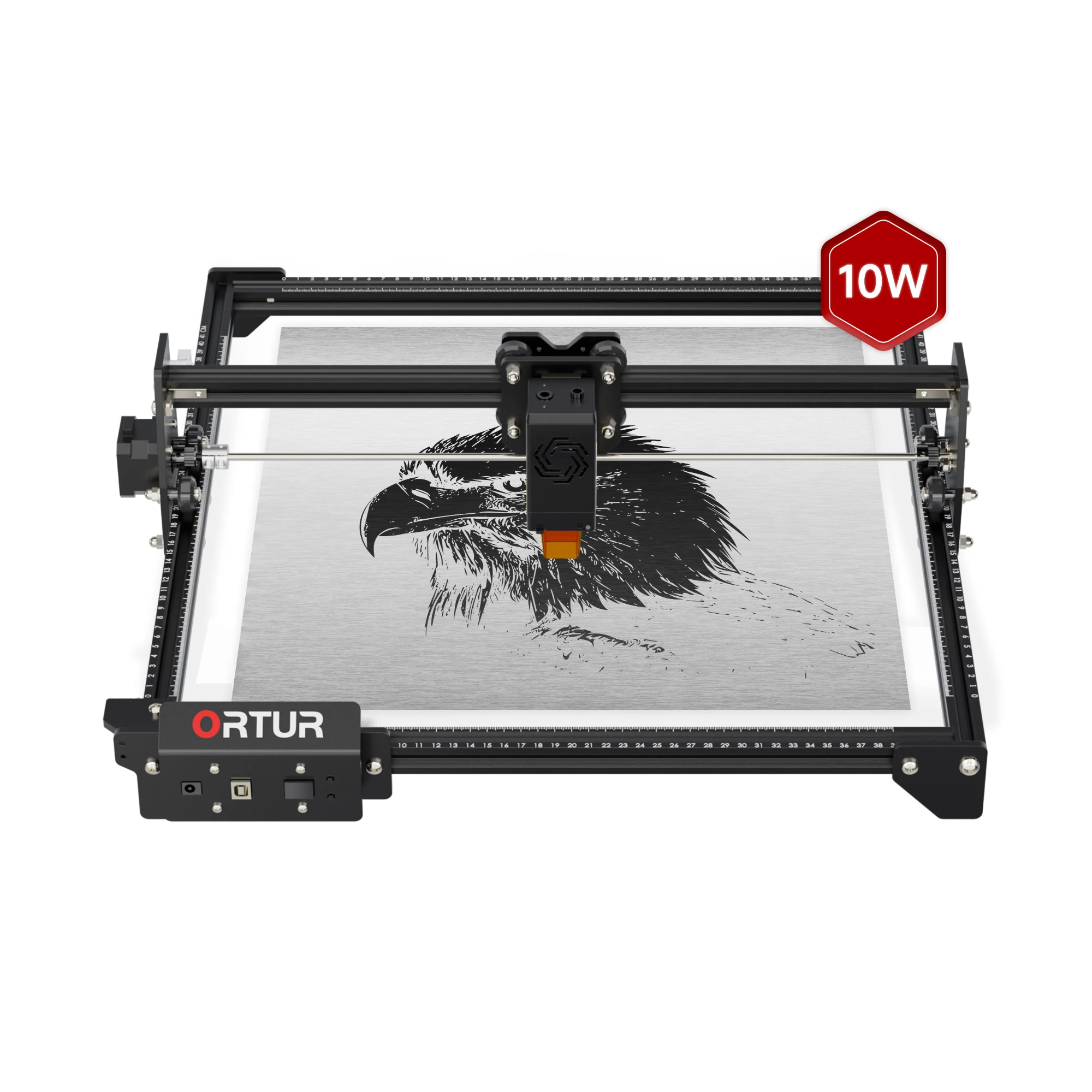

| Model | Ortur F10 | Ortur H10 | Ortur LM3 | Ortur LM3 LE | Ortur LM2 Pro S2 | Ortur LM2 S2 |
|---|---|---|---|---|---|---|
| Main Features |
- For large projects - AutoPassthrough Technology - Compatible with all Ortur Modules - Superior Engraving Speed - Smart App Control |
- Beginner-friendly desktop engraver - Pre-assembled - Smart App Control - Stable reinforced structure - 6 Safety Protections |
- Flagship Ortur open-frame engraver - Superior Speed & Precision - Smart App Control - 8 Safety Protections |
- Cost-effective version of LM3 - Solid frame & minimalist design - Smart App Control - 6 Safety Protections |
- Classic Ortur engraver - Extended Engraving Range - Metal Frame with Scale - 7 Safety Protections |
- Most affordable Ortur engraver - Metal Frame with Scale - Budget-friendly - 5 Safety Protections |
| Maximum Speed | 20,000 mm/min | 20,000 mm/min | 20,000 mm/min | 15,000 mm/min | 15,000 mm/min | 5,000 mm/min |
| Working Area | 400×3000 mm | 300×300 mm | 10W: 400×400 mm 20W/40W: 400×380 mm |
400×400 mm | 400×400 mm | 390×410 mm |
| Extended Area | – | – | 400×850 mm | – | 400×800 mm | 390×800 mm |
| Product Size | 574.5×212.5×176.5 mm | 507×558×130 mm | 658×625×150 mm | 614×588×128 mm | 600×570×130 mm | 580×550×150 mm |
| Package Size | 625×342×227 mm | 695×585×105 mm | 660×230×230 mm | 670×330×130 mm | 660×250×110 mm | 620×215×130 mm |
| Supported Software | LightBurn, LaserGRBL, Ortur App | LightBurn, LaserGRBL, Ortur App | LightBurn, LaserGRBL, Ortur App | LightBurn, LaserGRBL, Ortur App | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| Supported Functions | WIFI / APP / USB / TF Card | WIFI / APP / USB / TF Card | WIFI / APP / USB / TF Card | WIFI / APP / USB / TF Card | USB | USB |
| Supported Formats | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG |
| Supported Systems | Windows, Mac OS, Linux, Android, iOS | Windows, Mac OS, Linux, Android, iOS | Windows, Mac OS, Linux, Android, iOS | Windows, Mac OS, Linux, Android, iOS | Windows, Mac OS, Linux | Windows, Mac OS, Linux |
| Safety Protections |
- Tilt Motion Detection - Anti-crash Watchdog Mechanism - Laser Exposure Time Limit - Active Position Protection - Voltage & Current Safety Control System |
- Laser Exposure Time Limit - Tilt Motion Detection - USB Connection Monitor - Active Position Protection - Anti-crash Watchdog Mechanism - Voltage & Current Safety Control System |
- Safety Lock - Emergency Stop Button - Laser Exposure Time Limit - Tilt Motion Detection - USB Connection Monitor - Active Position Protection - Anti-crash Watchdog Mechanism - Voltage & Current Safety Control System |
- Laser Exposure Time Limit - Tilt Motion Detection - USB Connection Monitor - Active Position Protection - Anti-crash Watchdog Mechanism - Voltage & Current Safety Control System |
- Flame Detector - Emergency Stop Button - Tilt Motion Detection - Laser Exposure Time Limit - USB Connection Monitor - Active Position Protection - Voltage & Current Safety Control System |
- Tilt Motion Detection - Anti-crash Watchdog Mechanism - Laser Exposure Time Limit - Active Position Protection - Voltage & Current Safety Control System |
| Link | Learn More > | Learn More > | Learn More > | Learn More > | Learn More > | Learn More > |
